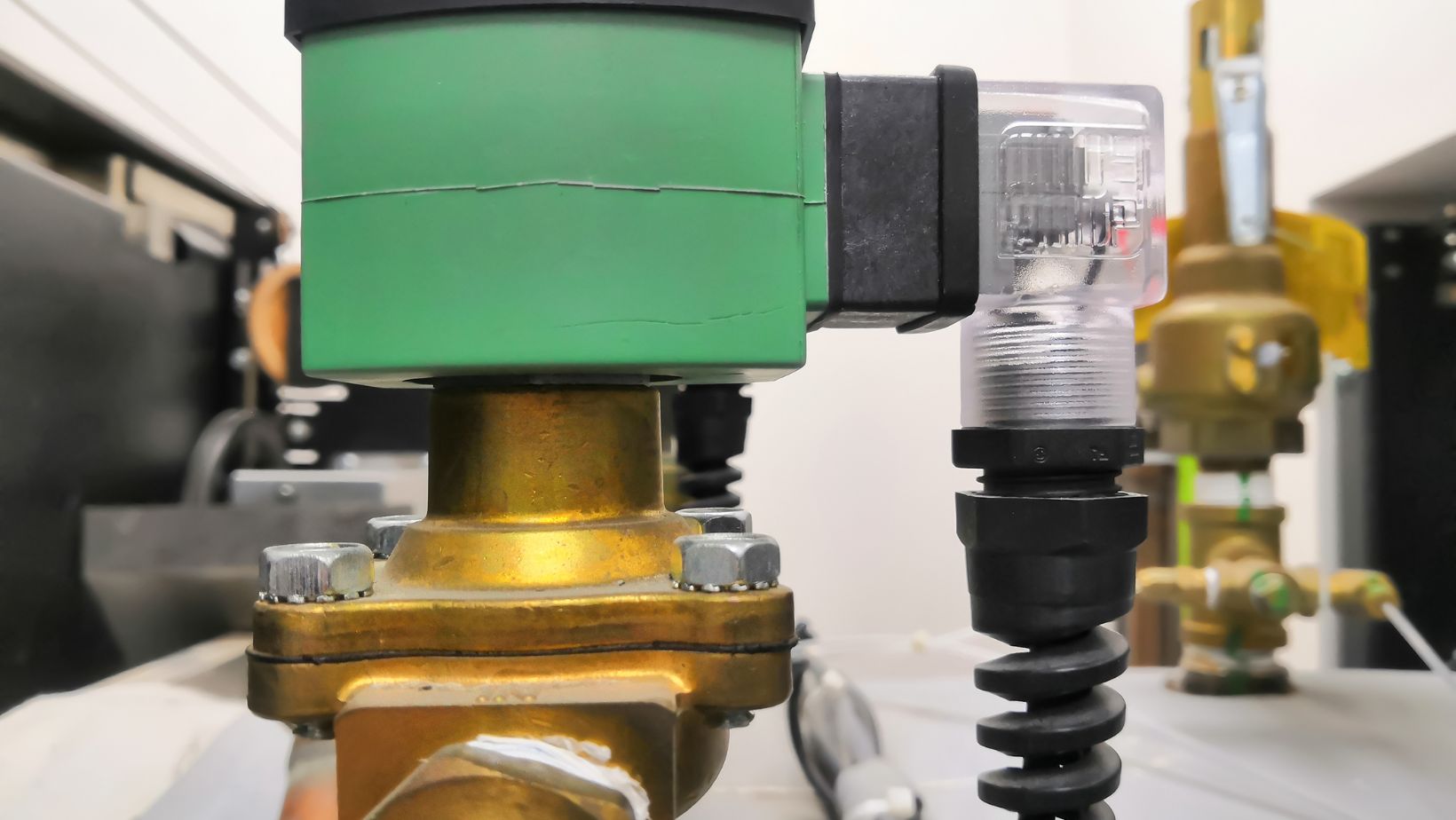

Imagine the smooth functioning of intricate industrial gear, the automated and effective watering of enormous agricultural fields, or the precise medication administration in a vital medical gadget. A seemingly inconspicuous part is at the core of these various but essential processes: the solenoid valve. As a critical gatekeeper, this electromechanically driven valve intelligently regulates the flow of gases and liquids with exceptional accuracy and dependability. Essentially, a solenoid valve starts, stops, or guides fluid or gas flow by mechanically opening or closing an orifice inside the valve body using an electromagnetic force.
It is impossible to overestimate the significance of solenoid valves. They are essential in many different industries and applications due to their capacity to provide automated, remote, and quick flow control. Solenoid valves provide a reliable and effective way to control fluid dynamics in various applications, including large-scale manufacturing facilities, everyday appliances, complex hydraulic and pneumatic systems, and sophisticated analytical equipment.
A prime example of this versatile technology is the Bürkert 6213 solenoid valve. This specific valve, often employed in applications requiring reliable control of neutral and aggressive fluids, exemplifies the precision engineering and robust performance characteristic of high-quality solenoid valves. Its 2/2-way configuration signifies its function of opening or closing a single flow path, making it a fundamental building block in numerous fluid control circuits.
Core Components of a Solenoid Valve
The functionality of a solenoid valve hinges on the interplay of two primary assemblies: the solenoid (the electromechanical actuator) and the valve body (the fluid control element). Understanding the individual components within each assembly is crucial to grasping the overall operation.
The Solenoid (Electromagnet): The Actuating Force
At the heart of the solenoid valve lies the solenoid, which acts as an electromagnet converting electrical energy into mechanical motion. This assembly primarily comprises:
- Coil: This consists of a length of conductive wire, typically copper, meticulously wound around a hollow cylindrical core. When an electrical current is passed through this coil, it generates a magnetic field. The strength of this magnetic field is directly proportional to the current and the number of turns in the coil.
- Plunger/Armature: The plunger, also known as the armature, is situated within or adjacent to the coil’s core. This movable component is made of a ferromagnetic material, meaning a magnetic field strongly attracts it. The plunger is designed to translate linearly within the core when the coil is energized.
- Return Spring (if applicable): Many solenoid valve designs incorporate a return spring. This mechanical component is strategically positioned to exert a counterforce on the plunger. Its primary role is to return the plunger to its original default position (either open or closed) when the electrical current to the coil is interrupted and the magnetic field collapses.
The Fundamental Working Principle: Electromagnetism in Action
The operation of a solenoid valve is elegantly simple yet remarkably effective, relying on the fundamental principles of electromagnetism to control fluid flow. The transition between open and closed states is governed by the presence or absence of electrical current applied to the solenoid coil.
At Rest (De-energized State)
In its unpowered state, the plunger resides in a default position, either normally closed, blocking, or normally open, allowing flow. At this point, the forces acting on the plunger are primarily the mechanical force of the return spring (if present) and the fluid or gas pressure within the valve body. These forces maintain the valve in its default configuration.
Energized State
When an electrical current flows through the coil, it generates a magnetic field. This magnetic field exerts an attractive force on the ferromagnetic plunger. This magnetic force overcomes the opposing forces of the return spring and fluid pressure, causing the plunger to move. This movement directly affects the valve orifice, either opening it to permit flow in a normally closed valve or closing it to stop flow in a normally open valve.
De-energized State (Returning to Rest)
When the electrical current to the coil is interrupted, the magnetic field collapses. Consequently, the attractive force on the plunger ceases.
At this point, the return spring (if present) actively pushes the plunger back to its original default position. In valves without a return spring, the fluid pressure itself often assists in returning the plunger to its resting state, ensuring the valve reverts to its normally closed or normally open configuration.
Types of Solenoid Valve Operation
Solenoid valves can be broadly categorized based on their operational mechanism: direct-acting and pilot-operated.
Direct-Acting Solenoid Valves
In direct-acting valves, the movement of the solenoid’s plunger is directly linked to the opening or closing of the main valve orifice. When the coil is energized, the plunger directly lifts or pushes a poppet or the valve seat, thereby controlling the flow. This straightforward design is particularly effective in applications involving relatively low flow rates and lower system pressures, where the solenoid’s magnetic force can directly overcome the fluid pressure and spring force.
Pilot-Operated (Indirect-Acting) Solenoid Valves
Pilot-operated valves, also known as indirect-acting valves, employ a different approach. Here, the solenoid does not directly actuate the main valve orifice. Instead, the energized solenoid controls a smaller pilot port. The opening or closing of this pilot port then manipulates the system’s fluid pressure to drive the main valve mechanism. This design allows for the control of significantly higher flow rates and pressures, as the solenoid only needs to actuate a small pilot valve, leveraging the power of the process fluid to operate the larger main valve. These valves are commonly found in applications with higher flow and pressure demands.
Factors Influencing Solenoid Valve Function
A solenoid valve’s reliable and efficient operation is influenced by several key factors, encompassing the electrical input, the properties of the controlled media, the valve’s physical characteristics, and its actuation speed.
Electrical Input (Voltage, Current)
The electrical signal supplied to the solenoid coil is fundamental to its operation. The voltage and current dictate the strength of the electromagnetic field generated. Insufficient voltage or current may result in a weak magnetic field, preventing the plunger from fully acting and leading to incomplete valve opening or closing or even failure to operate. Conversely, excessive voltage or current can overheat the coil, potentially causing damage and premature failure. Therefore, matching the electrical input to the valve’s specifications is crucial for reliable performance.
Fluid/Gas Properties (Pressure, Viscosity, Temperature)
The characteristics of the fluid or gas being controlled significantly impact solenoid valve function and selection. Pressure directly opposes the solenoid’s force; higher pressures require stronger solenoids or pilot-operated designs. Viscosity, the fluid’s resistance to flow, affects the speed of valve operation and the pressure drop across the valve. Highly viscous fluids can slow down actuation and increase energy consumption. Temperature can influence the material properties of the valve components, including seals and the coil insulation. Operating outside the valve’s rated temperature range can lead to leaks, material degradation, and failure.
Valve Design and Materials
The physical construction and the materials used in a solenoid valve are critical determinants of its reliability and suitability for specific applications. The valve design dictates the flow capacity and pressure handling capabilities, including the orifice size, port configuration, and internal flow paths. The construction materials, such as the body material (e.g., brass, stainless steel, plastic) and the sealing materials, must be compatible with the controlled media to prevent corrosion, chemical attack, and leakage. The robustness of the design and the quality of the materials directly influence the valve’s lifespan and performance under various operating conditions.
Response Time
Response time refers to the speed at which a solenoid valve can transition between its open and closed states. This is a crucial parameter in applications requiring rapid and precise control, such as automated machinery, high-speed dispensing systems, and safety shut-off mechanisms. Factors influencing response time include the solenoid’s power, the mass of the moving parts (plunger), and the fluid viscosity. Valves with faster response times offer more precise and dynamic control over the flow.
Applications of Solenoid Valves (Highlighting their Function)
Solenoid valves, with their core function of controlling flow, are integral to numerous industries:
- Industrial Automation: Used to direct compressed air in pneumatic actuators and control hydraulic fluid in machinery, enabling automated movements and processes.
- Medical Devices: Precisely regulate the flow of liquids and gases in critical equipment like anesthesia machines and dialysis units, ensuring accurate treatment delivery.
- Automotive Industry: Control fuel injection for efficient engine operation and regulate coolant flow to maintain optimal engine temperature.
- HVAC Systems: Manage the flow of refrigerant, a key component in heating and cooling cycles, for efficient climate control.
- Irrigation Systems: Automate water distribution to agricultural fields and landscaping, optimizing water usage.
- Vending Machines: Control the dispensing of beverages and other liquids to consumers upon selection.
In essence, a solenoid valve harnesses electromagnetic force to control the flow of fluids and gases precisely. When energized, an electrical current creates a magnetic field that
moves a plunger, opening or closing a valve orifice. This simple yet effective principle underpins the widespread importance of solenoid valves in modern technology. Their ability to provide reliable, rapid, and automated flow control makes them indispensable across diverse industries, from critical medical applications to large-scale industrial processes. Future advancements in materials science, miniaturization, and smart technologies will likely enhance solenoid valves’ efficiency, precision, and integration capabilities, solidifying their role as crucial components in an increasingly automated world.
